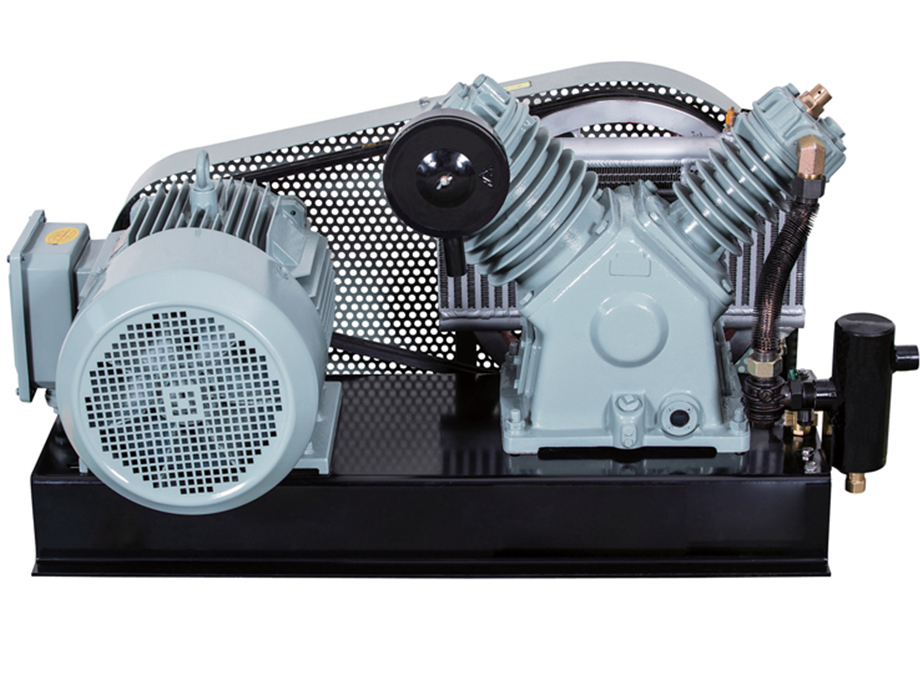

HCV-40/30F marine air compressor

The HCV-40/30F marine air compressor is a high-performance compressed air supply device designed specifically for marine operating conditions, suitable for the starting, control, and auxiliary air supply systems of various types of ships.

Product Overview

This type of air compressor features a compact structure, stable operation, and easy maintenance, enabling it to operate reliably for extended periods in marine environments. Its design balances efficiency and durability, providing a continuous and stable supply of compressed air to ships.

Technical features

• High-efficiency exhaust: with an exhaust volume of 40 m³/h and an output pressure of 3.0 MPa, it meets the pressure and flow requirements of the ship's systems for the air source.

• Power matching: It adopts an 11KW motor with a speed of 640r/min, and is equipped with belt drive, which ensures smooth operation and good transmission efficiency.

• Highly adaptable: Electrically compatible with 380V 50/60Hz, adaptable to different ship power configurations in different regions.

• Reliable lubrication: Splash lubrication ensures sufficient lubrication of internal components and improves continuous operation.

• Compact structure: Dimensions are 1070×600×650mm, weight is 300KG, layout is reasonable, and it is easy to install and arrange on the ship.

Specifications

• Model: HCV-40/30F

• Exhaust volume: 40m³/h

• Rated pressure: 3.0 MPa

• Motor power: 11KW

• Rotational speed: 640 r/min

• Power supply: 380V, 50/60Hz

• Transmission method: Belt drive

• Lubrication method: Splash lubrication

• Net weight: 300KG

• External dimensions: 1070mm × 600mm × 650mm

This air compressor is suitable for daily operations and control systems on ships, has good environmental adaptability and operational reliability, and can provide users with a stable air supply.
