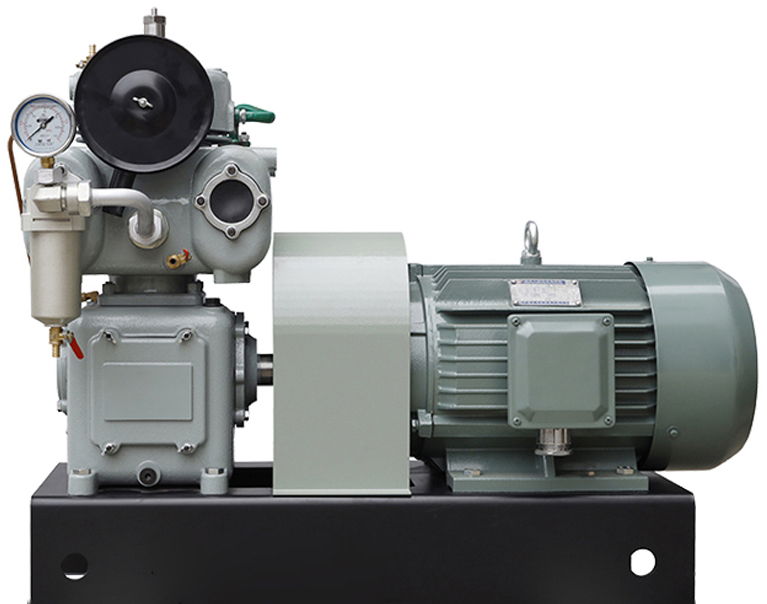

HCZ-20/30S Marine Air Compressor Product Introduction

HCZ-20/30S Marine Air Compressor Product Introduction

The HCZ-20/30S is a high-efficiency, reliable medium- and high-pressure reciprocating air compressor specifically designed for marine environments. With its compact structure, stable performance, and low maintenance requirements, it is widely used in shipboard applications requiring clean compressed air, including main/auxiliary engine start-up, control air systems, general air supply, and various other marine applications.

Overview of core parameters:

• Model: HCZ-20/30S

• Exhaust volume: 20 m³/h

• Rated exhaust pressure: 3.0 MPa (30 bar)

• Drive power: 5.5 KW

• Rotational speed: 1000 r/min

• Power supply: 380V / 50Hz or 440V / 60Hz (suitable for different shipboard electrical systems)

• Transmission method: Direct drive, simple structure, high transmission efficiency.

• Lubrication method: Splash lubrication, reliable operation, and easy maintenance.

• External dimensions (LxWxH): 900 x 500 x 680 mm

• Net weight: Approximately 230 kg

Key features of the product:

1. Rugged and durable with excellent seaworthiness: Made with high-quality materials and heavy-duty design, key components are treated with anti-corrosion coatings, enabling it to withstand the vibration, humidity and salt spray of the marine environment for a long time, ensuring stable operation under harsh conditions.

2. Highly efficient and compact, saving space: The direct-drive design reduces transmission components, resulting in a compact overall structure and small footprint, making it ideal for space-constrained ship engine room layouts.

3. Stable operation and easy maintenance: The splash lubrication system eliminates the need for an external oil pump, simplifying the structure and reducing potential failure points. Its design facilitates daily inspection, maintenance, and repair, effectively reducing total lifecycle maintenance costs.

4. Wide voltage design: Compatible with two common marine electrical standards, 380V/50Hz and 440V/60Hz, improving the equipment's adaptability to different marine power systems and facilitating global configuration and use.

5. Excellent output air quality: Through multi-stage separation and filtration, it can provide clean and dry compressed air for the system, effectively protecting downstream equipment.

Customized production services

We understand that different ships have different configurations, operating conditions, and specific needs. Therefore, the HCZ series air compressors, while offering standard models, also support comprehensive customized production to meet customers' special requirements. Key customization options include, but are not limited to:

• Customizable flow and pressure: The exhaust volume (m³/h) and maximum working pressure (MPa) can be adjusted according to requirements, providing models with different exhaust volume-pressure combinations.

• Customizable drive method: In addition to standard direct-drive motor, diesel engine drive, belt drive and other methods are available to adapt to scenarios where there is no suitable power supply or special layout.

• Power supply and frequency customization: Motors suitable for other voltages (such as 220V, 415V, etc.) and frequencies can be provided according to the shipowner's specifications.

• Customizable control methods: It can be upgraded from simple start-stop control to an intelligent control system with automatic start-stop, unload start, multiple protections (overload, high temperature, low pressure, etc.), and can be integrated with a remote monitoring interface.

• Accessories and configuration customization: Different levels of aftercoolers, oil-gas separators, air dryers, mufflers, explosion-proof ratings, as well as special bases, paint colors and markings can be customized.

• Certification Requirements: We can assist in meeting the certification requirements of major classification societies (such as CCS, ABS, DNV, BV, LR, etc.) as needed.

Summarize

The HCZ-20/30S marine air compressor is a high-performance, highly adaptable basic model. Its robust design and ease of maintenance make it ideal for various types of vessels. Our strong customization capabilities further ensure that we provide compressed air solutions perfectly tailored to your specific vessel system design, space constraints, and operating procedures.

Feel free to contact us to discuss your specific needs in detail. We will provide you with the most suitable products and technical solutions.
