HC-X100 High-Pressure Breathing Air Compressor

Product Overview

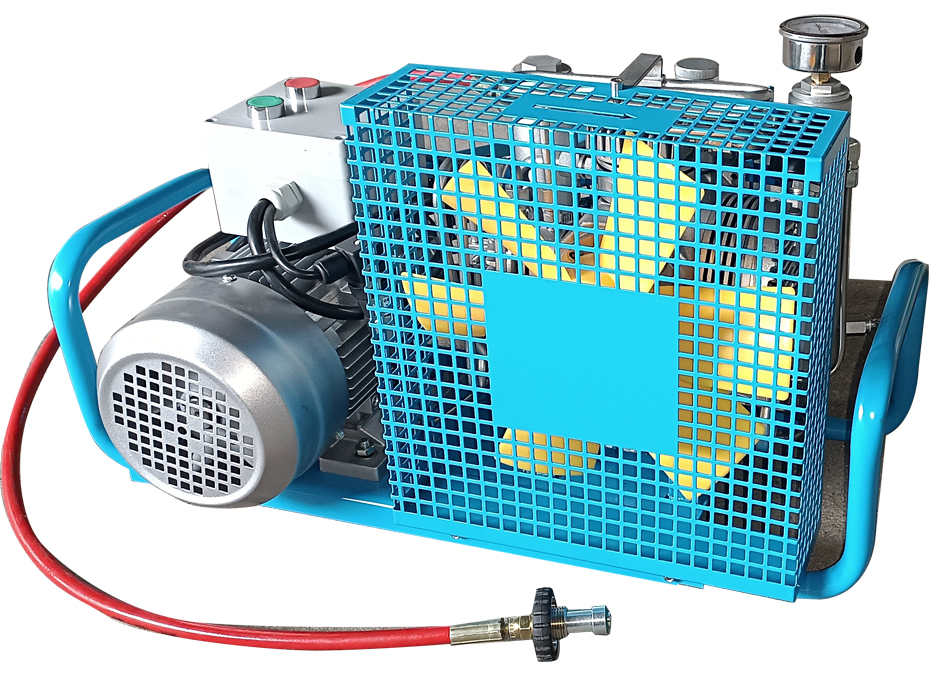

The HC-X100 is a high-performance, high-pressure breathing air compressor. It features an optimized architecture designed in Italy, combined with a specially manufactured final-stage piston and piston rings based on Riken technology from Japan. Key castings are produced in collaboration with large, specialized factories. After more than a decade of market validation, this product has earned widespread user trust thanks to its superior reliability and clean air output.

This equipment adopts four-cylinder four-stage compression technology, and is equipped with a splash lubrication system, a final safety valve and a high-efficiency filtration and purification system. It can provide safe and reliable compressed air for various industries that require high-pressure pure air sources, and the quality of its output air fully meets the human respiratory safety standards.

The HC-X100 is designed, manufactured, and inspected according to GB/T 3853-2017 "Positive Displacement Compressors" standard, and its output air quality simultaneously meets GB/T31975-2015 "Technical Requirements for Compressed Air for Respiratory Protection" and GB18435-2007 "Diving Breathing Gases and Detection Methods". This equipment can compress air from its free state (1 bar / 0.1 MPa) to a working pressure of 300 bar (30 MPa) in stages. After passing through the built-in separator and multi-stage filtration system, oil, impurities, and fine particulate matter (PM2.5) are efficiently removed, resulting in clean, odorless, and safe output air that meets the relevant guidelines of the World Health Organization (WHO) and is suitable for personnel breathing and other high-requirement applications.

Product Parameters

Core features and advantages

• Operational safety is paramount: Transmission components are equipped with robust protective covers, and the final stage has a safety valve to automatically release overpressure, ensuring the safety of personnel and equipment in all aspects.

• Superior cooling and durability: High-strength nylon cooling fans provide high heat dissipation efficiency; the compressor body is precision-manufactured and equipped with stainless steel cooling pipes to ensure long-term durability.

• Highly efficient compression and lubrication: The four-cylinder, four-stage compression design features a low compression ratio per stage, resulting in more reliable operation; the splash lubrication system ensures that critical components are adequately lubricated.

• Pure, breathable air: Integrated three-stage air handling system (filtration, oil-water separation, and purification), employing triple purification technology of activated carbon, molecular sieves, and CO absorbent. The filter element is reusable, resulting in low maintenance costs.

• Flexible power and handling: Standard configuration includes electric motor drive, with optional gasoline engine drive to adapt to off-road or power-free environments; manual and automatic shutdown control modes are available (optional).

• Precise and intuitive monitoring: Equipped with a shockproof pressure gauge and dual scale display (psi/bar) for easy reading by users worldwide.

Application areas

• Firefighting and Emergency Rescue: Providing high-pressure clean air filling for fire stations and rescue vehicles to ensure that firefighters have safe and reliable breathing air in smoke, toxic or oxygen-deficient environments.

• Diving and water operations: Widely used in diving clubs, offshore operations, aquaculture, underwater engineering, salvage and ship maintenance, providing life support air supply for divers.

• Thrower power source: Provides stable and instantaneous high-pressure gas power for the rescue throwing device, used to quickly deliver rescue supplies such as lifebuoys and ropes.

• Industrial Inspection and Testing: Applicable to airtightness testing, pressure resistance testing, and strength testing of pressure vessels, gas cylinders, valves, pipelines, and automotive parts, it is a key piece of equipment for industrial safety inspection.

• Sports and Recreation: Provides a stable high-pressure air source for paintball (CS) and pneumatic simulation equipment, meeting the professional needs of sports venues, recreational facilities and training units.
