HC-W150/SH

HC-W150/SH High-Pressure Breathing Air Compressor

Product Overview

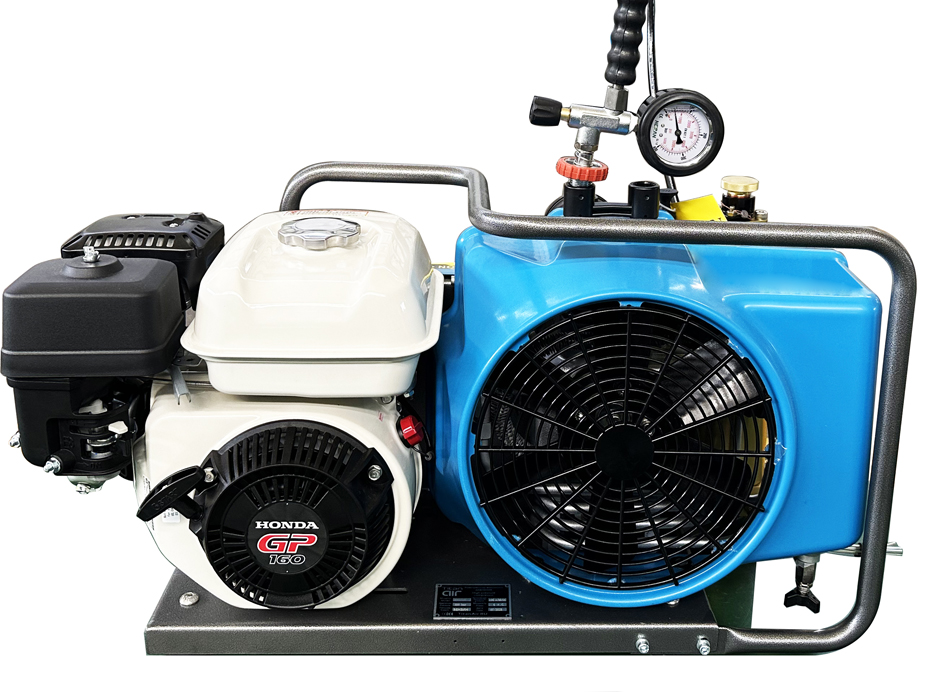

The HC-W150/SH is a high-performance, gasoline-powered, high-pressure breathing air compressor. Based on an optimized design of a German model, and after more than ten years of mass production and market validation, it has received consistent praise from users, providing reliable, safe, and ultra-clean compressed air. It is particularly suitable for providing air supply support for breathing equipment in field operations where power supply is inconvenient or unreliable.

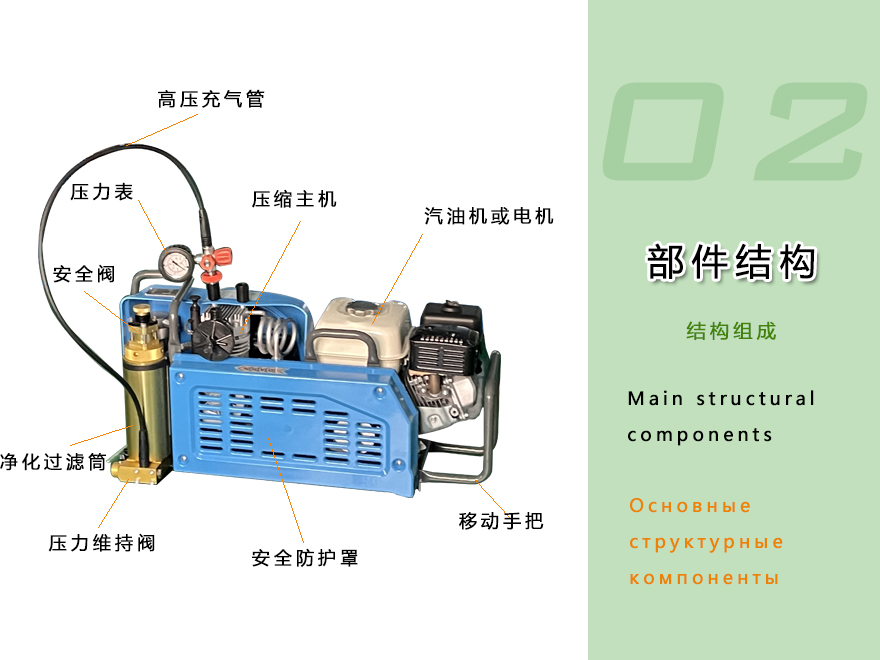

This unit employs a robust and durable three-cylinder, three-stage compression system with splash lubrication. Key components (such as the final-stage piston and piston rings) utilize special processes and Riken technology from Japan, and all castings are sourced from specialized large-scale foundries, ensuring exceptional durability. The integrated system is equipped with a final-stage safety valve and a complete filtration and purification unit, ensuring that the output air quality meets the most stringent international standards for human respiration. It compresses ambient air (1 bar) to a maximum discharge pressure of 300 bar (30 MPa).

Airflow is thoroughly purified after passing through a separator and multi-stage filters, removing oil, particulate matter, and odors. The output air quality meets the World Health Organization (WHO) guidelines (PM2.5 <10 µg/m³ after filtration), GB/T 31975-2015 "Technical Requirements for Compressed Air for Respiratory Protection", and GB 18435-2007 "Diving Breathing Gases and Detection Methods", meeting the safety requirements for critical respiratory applications.

Product Parameters

Core features and advantages

• Clean breathing grade air: The output air meets the stringent standards for breathing apparatus applications such as diving and fire fighting (e.g., WHO PM2.5, GB/T 31975).

• Reliable three-stage compression: The three-cylinder, three-stage design features a low compression ratio per stage, resulting in smoother operation and better durability.

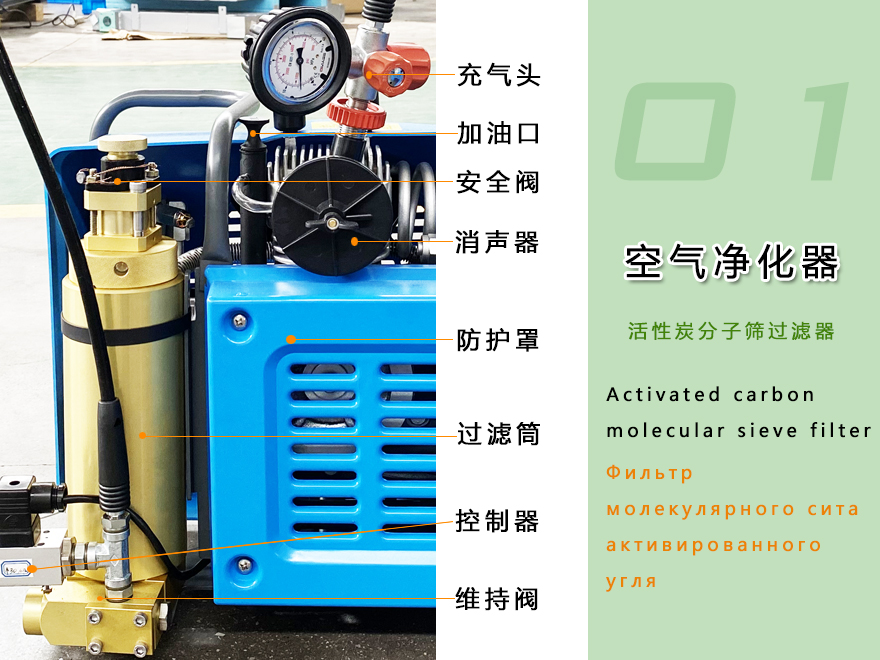

• Complete purification system: integrates an oil-water separator and a three-stage breathing air filter (activated carbon, molecular sieve, and carbon monoxide adsorbent) to effectively remove moisture, oil mist, odors, and harmful gases.

• Safety-first design: Equipped with a final-stage safety valve, protective covers for rotating parts, and shockproof pressure gauges (0-5800 PSI) to ensure safe operation.

• High-efficiency cooling and lubrication: A high-strength nylon cooling fan combined with a splash lubrication system ensures optimal heat dissipation.

• Gasoline engine powered, highly mobile: Powered by a reliable Honda engine, it requires no external power source and can operate freely in various outdoor environments.

• Rugged and durable construction: The finely manufactured base, stainless steel cooling system, and high-quality components ensure a long service life.

• Flexible configuration: Discharge pressure is selectable (225 or 330 bar). Manual control is standard, with automatic shutdown function optional.

• Global adaptability support: Can be customized to local voltage/frequency requirements, and OEM/ODM cooperation is accepted.

Application areas

• Firefighting breathing applications: Provide emergency breathing air inflation for fire trucks, mobile air supply stations, or on-site operations, ensuring the safety of firefighters in environments with dense smoke, toxic substances, or oxygen deficiency.

• Diving and marine operations: Suitable for diving clubs, marine aquaculture, underwater engineering, salvage and rescue, shipbuilding and other fields, providing divers with safe breathing air.

• Power source for the thrower: Provides high-pressure gas power for the rescue thrower, used to launch lifebuoys, ropes, etc.

• Air tightness and pressure testing: Used for sealing and strength testing of pressure vessels, gas cylinders, valves, pipelines, automotive parts and aerospace equipment.

• Paintball/Airsoft Power: Provides stable, high-quality compressed air power for sports such as paintball (CS) and airsoft.
