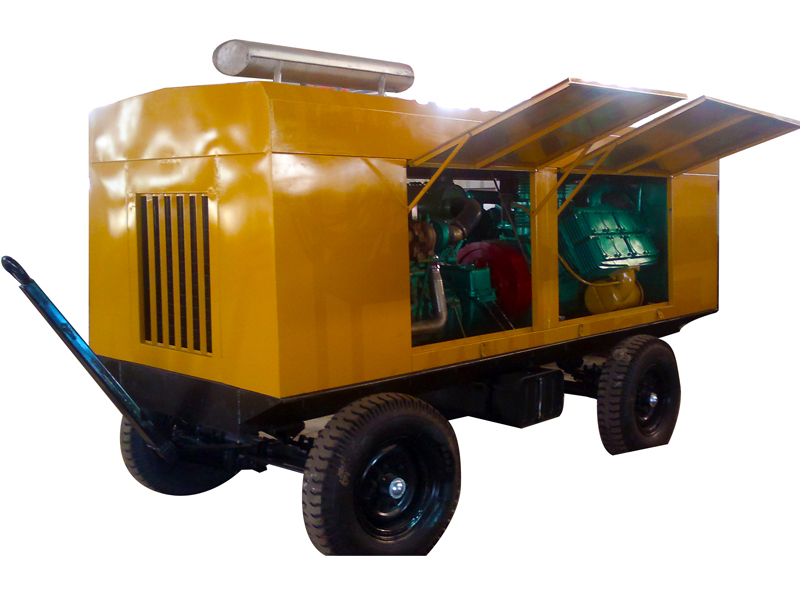

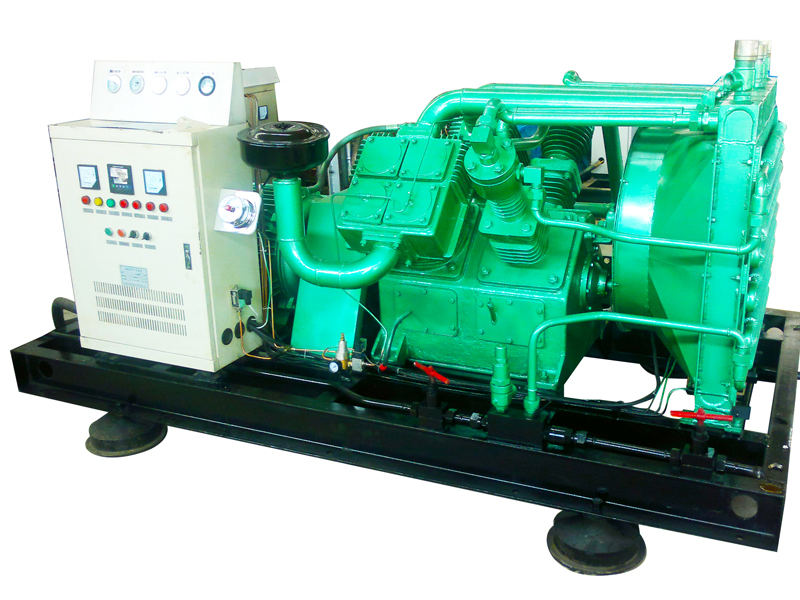

SF-3.1/8-60QZ Direct-drive diesel skid-mounted air supercharger

SF-3.1/8-60QZ Air Compressor

I. Main Technical Parameters of the Compressor

1. Compressor Model: SF-3.1/8-60QZ Diesel Skid-Mounted Air Supercharger

2. Compressor type: S-type reciprocating piston (equipped with original 30/8)

3. Compressor medium: air

4. Displacement: 3.1 m³/min (4 cylinders in stage 1, 4 cylinders in stage 2)

5. Intake pressure: Atmospheric pressure

6. Rated exhaust pressure: 6.0 MPa

7. Inlet air temperature: ≤40℃

8. Exhaust temperature: ≤180℃

9. Power: 160kW

10. Air compressor speed: 1200 rpm

11. Compression levels: Two

12. Number of compressor rows: Eight rows

13. Cooling method: Air cooling

14. Lubrication method: Splash lubrication

15. Transmission method: Direct connection via coupling

16. Lubricating oil consumption: 90g/h

17. External dimensions (length × width × height): 7000 × 2160 × 2300 (mm)

18. Drive type: YC6M350L-D20 235KW/1500

19. Travel: 120mm

20. Weight: 6000Kg

II. Instrument Control System

1. The instrument panel is equipped with primary and secondary pressure gauges.

2. The compressor will automatically stop when it reaches the required pressure.

III. Gas System

1. Safety valves are installed in each stage of the exhaust pipeline.

2. The compressor is equipped with primary and secondary coolers.

3. The compressor is equipped with an interstage oil-water separator.

IV. Scope of Supply

1. Scope of Equipment Supply

Compressor main unit, diesel engine, cooler components, air piping components, instrument panel components, instrument piping components, accessories, safety valves at all levels, check valves, skid-mounted base frame, operator's cab.
