HC-W320/ET

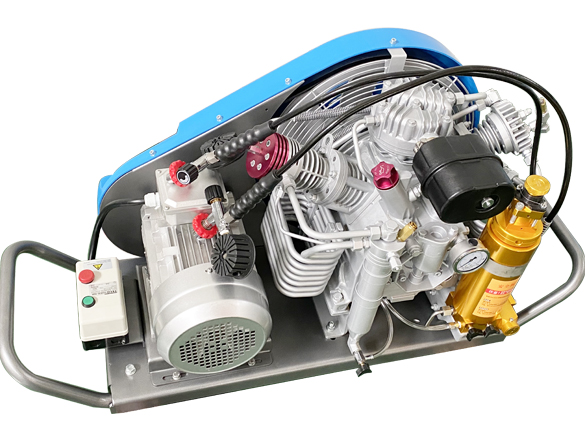

HC-W320ET High-Pressure Breathing Air Compressor

Product Overview

The HC-W320 is a high-pressure air compressor based on an optimized design of a German model, now in mass production. It features a specially manufactured final-stage piston, piston rings using Riken technology from Japan, and core components cast in collaboration with a large, specialized factory. Having undergone over a decade of market testing, it has earned widespread praise from users.

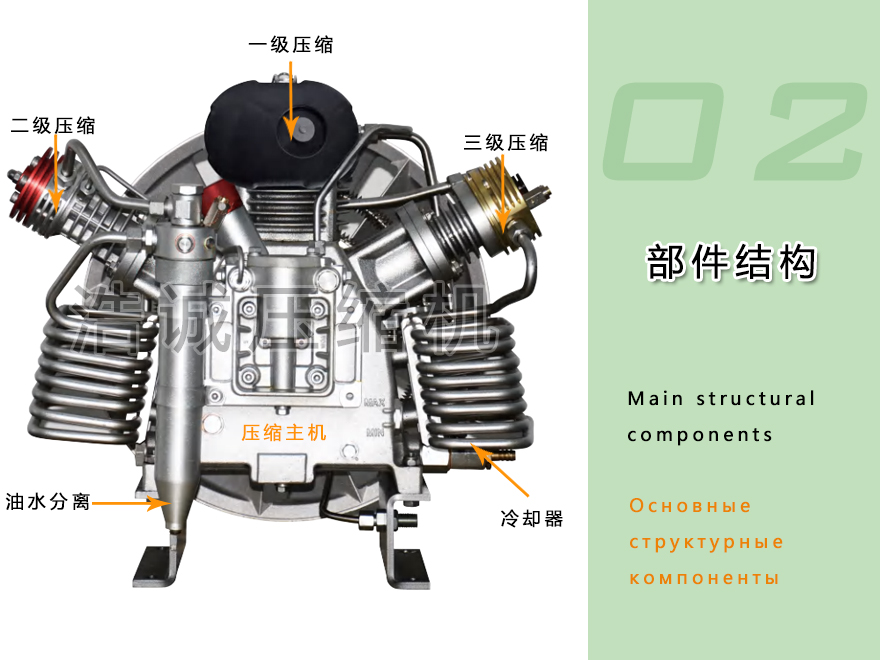

This product uses a three-cylinder, three-stage compression system with splash lubrication. It is equipped with a final-stage safety valve and a multi-stage filtration system, providing safe and reliable compressed air for any industry that requires a high-pressure, pure air source. The air quality fully meets the stringent requirements for human respiration.

The equipment is designed, manufactured, and inspected according to GB/T 3853-2017 "Positive Displacement Compressors" standard; the output air quality meets GB/T 31975-2015 "Technical Requirements for Compressed Air for Respiratory Protection" and GB 18435-2007 "Diving Breathing Gases and Detection Methods". The HC-W320 can compress air from its free state (1 bar / 0.1 MPa) to a high pressure of up to 300 bar (30 MPa) in stages. After passing through the separator and multi-stage filters within the unit, the air not only efficiently removes oil, moisture, and impurities, but also filters fine particulate matter (PM2.5) from the inhaled air to a safe level below 10 micrograms per cubic meter, meeting World Health Organization standards, ultimately outputting clean, odorless, safe, and reliable high-purity compressed breathing air.

Product Specifications (Model: HC-W320/ET)

Core features and advantages

• Superior Air Quality: Air quality meets the highest requirements for diving and firefighting breathing. A triple-stage air purification system (activated carbon, molecular sieve, and carbon monoxide absorbent) ensures clean, safe, and odorless air.

• Rugged and Reliable Design: The main unit features a three-cylinder, three-stage compression design, with a finely crafted compressor housing for durability. A stainless steel cooling system paired with a high-strength nylon fan ensures efficient heat dissipation.

• Comprehensive safety features: Each stage is equipped with a safety valve for automatic overpressure relief; a pressure maintaining valve is provided at the end; rotating parts are protected; and the motor has overload, overheat, and undervoltage protection.

• High-efficiency lubrication and filtration: Splash-type high-efficiency lubrication system. The air inlet has a paper filter, the compression process is equipped with an oil-water separator, and the end has a deep air filter, effectively extending the filter life.

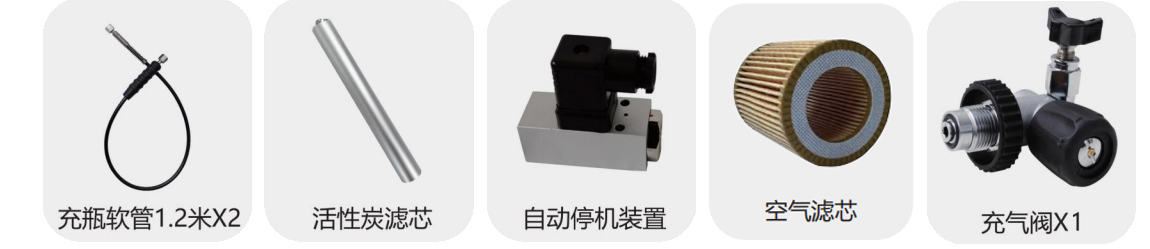

• Easy and flexible operation: Equipped with a running timer, two output interfaces can simultaneously fill two gas cylinders. Standard configuration includes manual sewage discharge, with an optional automatic control system.

• Strong customization capabilities: We offer OEM services, can customize voltage and frequency for different countries, and provide optional inflation pressure to meet diverse needs.




•

•

•

Application areas

• Firefighting breathing application: Equipped at fire station air supply stations or fire trucks, it provides emergency breathing air at fire and rescue sites, ensuring that firefighters can safely and effectively carry out firefighting and rescue operations in toxic, smoky, or oxygen-deficient environments.

• Diving breathing applications: Widely used in diving clubs, marine aquaculture, underwater engineering, shipwreck salvage, fishing, water parks and other fields, providing divers with safe and reliable high-pressure breathing air.

• Applications of air tightness testing: Used for air tightness inspection and pressure resistance testing of various pressure vessels, gas cylinders, valves, and pipelines, as well as strength testing and non-destructive testing of materials such as automotive parts, aviation hoses, and precision instruments. It is an important piece of equipment for industrial safety testing.




•

Global investment promotion and cooperation

A Chinese factory originating from China, sincerely inviting global partners to create a better future together!

We are actively expanding our global sales network and sincerely invite distributors, wholesalers and industry partners from all regions to join us.

• OEM/ODM services: We offer professional private label manufacturing services and can customize product appearance and packaging according to your brand requirements.

• Customized services: We can customize different voltage and frequency parameters according to the standards of the target market.

• Optional upgrades: Automatic drainage control, PLC control system and other optional functions are available to meet the upgrade needs of different customers.

Why choose us?

• Quality Assurance: A rigorous quality control system and mature processes ensure the durability of our products.

• Ultimate value for money: Factory direct supply, providing you with highly competitive prices and high profit margins.

• Professional support: We have an experienced technical team to provide solid support for our partners.

Contact us now to get samples or inquire about bulk quotes! Let's work together to bring safe and clean air solutions to the global market.
